TMK Hold&Cut
)
:focal(926x882:927x883))

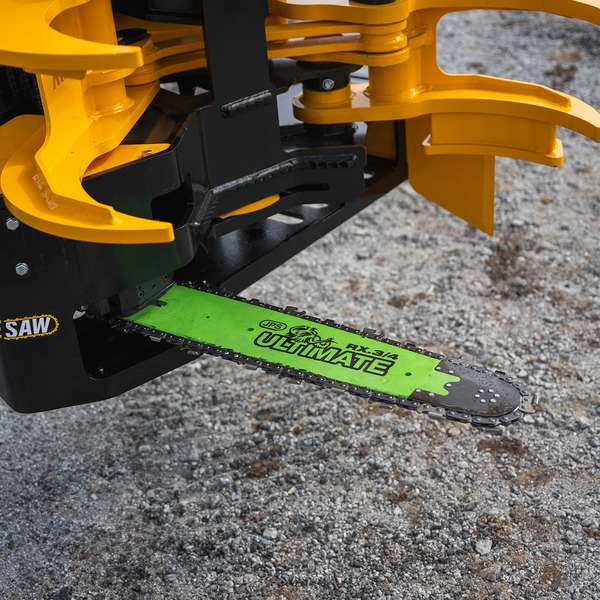

Just the Grapple Saw, nothing extra
:focal(1147x793:1148x794))

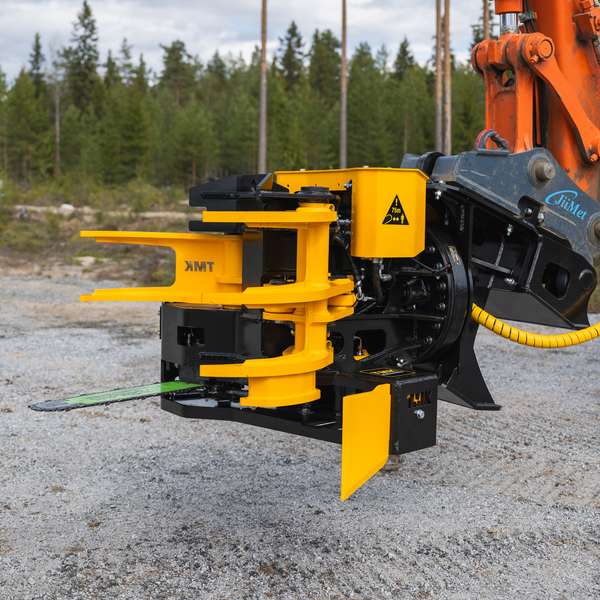

Grapple Saw with TMK's own Rotator & wireless control
Grapple Saw explained
)
Grapple Saw cutting a huge birch tree
Kobelco SK 235 SR LC
)
Strong frame
The frame is designed to handle the forces that excavators create. The frame also features a sturdy heel that can be used to take support with an excavator.
It is made from Hardox® 400 steel, that is known for it's hard wearing and forgiving qualities.
)
Saw unit
The TMK Grapple Saw uses a quality Swedish JPS saw unit, which features a 800mm saw bar with a .404” chain. A separate ¾”chain is also available as an option. The saw bar has an automatic lubrication system and works half-automatically together with the grapple arms. The unit also features a semi-automatic chain tightening system, to make working fast and efficient. In addition to the unit also having a support heel for maneuvering the excavator, the saw unit box itself is also very sturdy.
)
Grapple arms
The dual grapple arms open to a maximum width of 1190mm for easy material handling. They also close in tight, for grabbing smaller trees.
The arms can also be electronically locked in place for trickier sawing motions.
)
)
Well protected bar
)
)

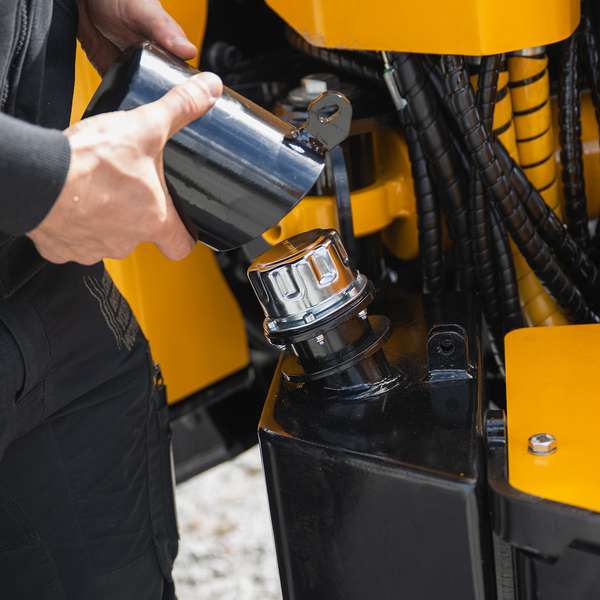

Cover for the cap
)
Hydraulically controlled tree shear blade
TMK Grapple Saw also features a Hydraulic moving cutting blade designed for cutting smaller branches and bushes.
Cutting capacity: 150 mm
)
)
)
)
The covers are very easy to remove
)

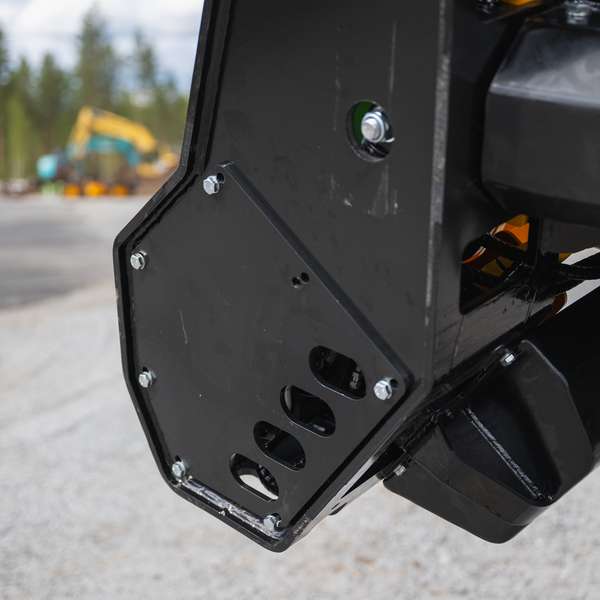

Bolt on adapter plates
Thanks to our bolt-on plates, the TMK Grapple Saw is easy to swap from one machine to another.
)
TMK Wireless unit
The Grapple Saw has altogether 5 different electric valve motions that can all be controlled with the TMK wireless unit.
Alternatively the Rotator can be controlled from its own external DA-line.
The Wireless unit is powered by of the shelf 18V drill batteries. You can use either Makita, Milwaukee or Dewalt batteries.
)
)
