TMK 150 Tree Shear
TMK 150 is TMK's smallest Tree Shear that can be used even with excavators as small as 1-ton. The TMK 150 weighs just 85 kg without the bracket, and 120 kg with a hanging linkage designed for forest loaders. The TMK 150 is an extremely efficient way to use even smaller excavators and forest trailers for energy wood logging, clearing field edges or cleaning up around a cottage.
- Cutting capacity
Up to 100 mm hard wood
Up to 150 mm soft wood
- Weight
85 kg without attachments or bolt on coupler
- Suitable for
1-3 ton excavators
Small mini loaders & telehandlers
Small tractor cranes & forest machines
- Recommended pressure
Standard cylinder: 180 bar
- Oil flow
Standard cylinder: 40-100 l/min
- Material
Hardox® steel
)
)
* The price of a Shear depends on a lot of factors including the attachments, cylinder choice and the bracket. This is a starting estimate, to give a general idea on what to expect when planning to buy a Shear.
ARE YOU INTERESTED?
Feel free to contact us and we will be happy to tell you more!

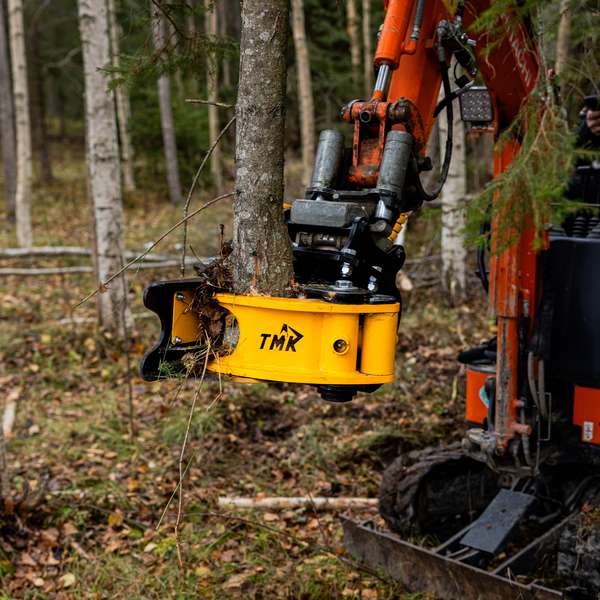

Tree shear for the smallest machines
TMK 150 is a nimble shear to smaller machines. This shear fits 1-4 tonnes excavators, mini loaders, forest trailers or tractor cranes.
8 mm thick Hardox 500 steel base plate, sharpened to act as the cutting blade.
Capsular Hardox 400 steel frame
can cut up to 150 mm trees
don’t let the cute looks mislead you; this shear is made for real work!
See it in action
)

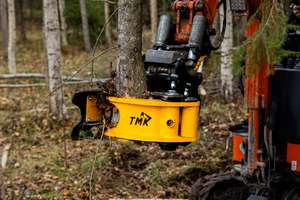

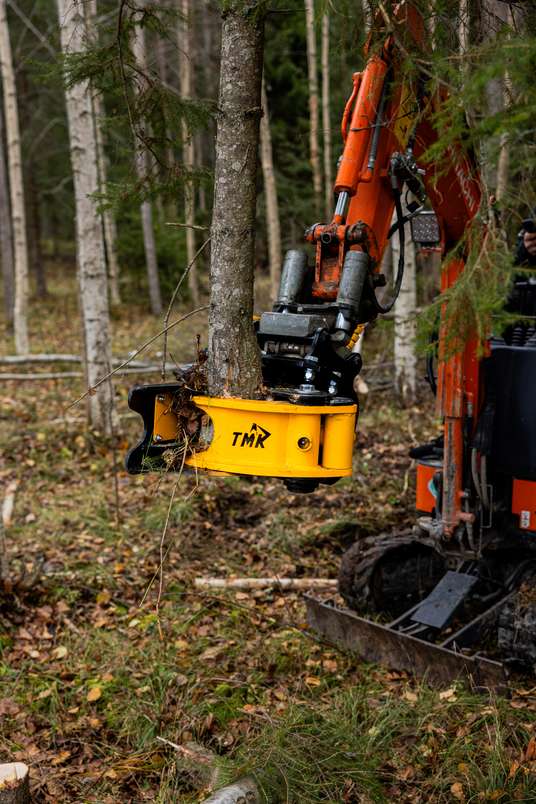

TMK 150
Cat 302 with Rototilt
TMK 150
Cat 302 with Rototilt
)

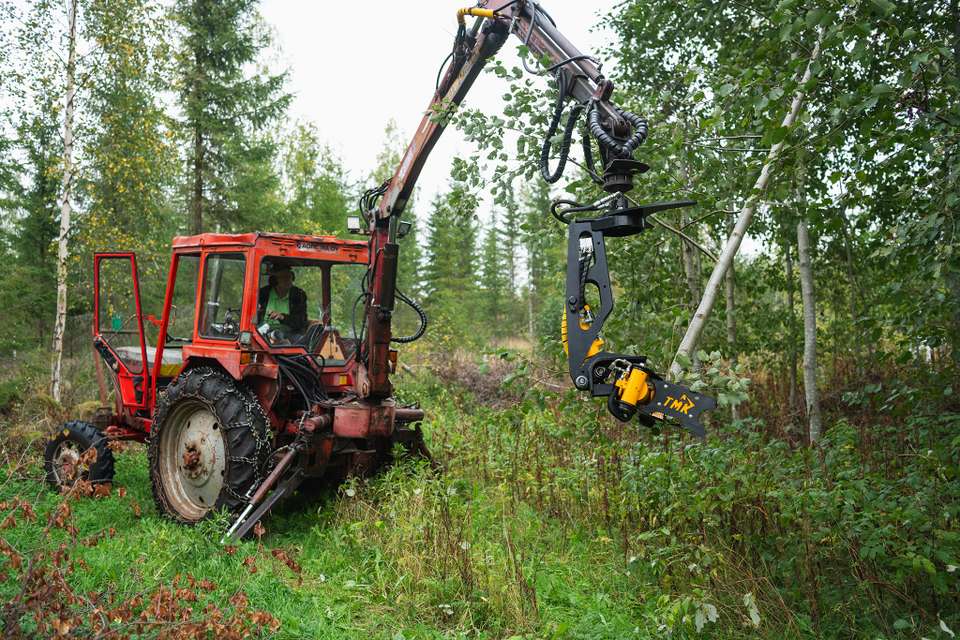

TMK 150 with Hanging Linkage
Belarus 525
)

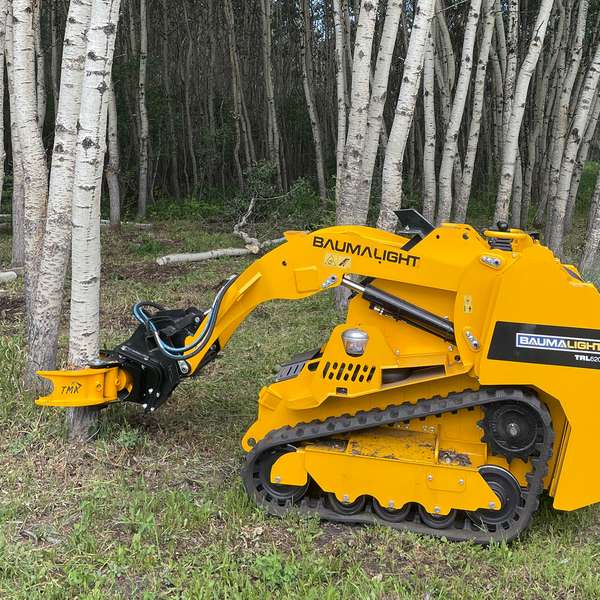

TMK 150
Baumalight TRL 620D
Features
Strong & light frame
TMK Tree Shears use a capsular design which allow them to be incredibly strong while being lighter than the competition.
The capsular structure helps keep the product small in size, which helps with maneuvering in the forest.
)
)
CUTS THROUGH 150 MM WOOD
Despite the small size, the TMK 150 is equipped with a strong cylinder, which together with the Hardox blade can produce a lot of force.
With just 180 bars of pressure you'll be cutting 15 cm trees with ease.
FOR MINI EXCAVATORS & MINI LOADERS
Thanks to its small size, the TMK 150 is perfect for the smallest excavators and loaders. Whether you are working in a garden or at the edge of the field, the TMK 150 is the go-to attachment for your smaller machines.
Choose from our wide range of adapter plates and get started!
Attachments for the TMK 150
TMK 150 can be fitted with a Hanging Tilt to convert the Tree Shear for forest machines and tractor cranes.
Quick coupler options
TMK products can be fitted with many different kind of Brackets depending on what you have in your machine.
You can choose from popular options, order a custom bracket or have it done elsewhere on our bracket plate.
)

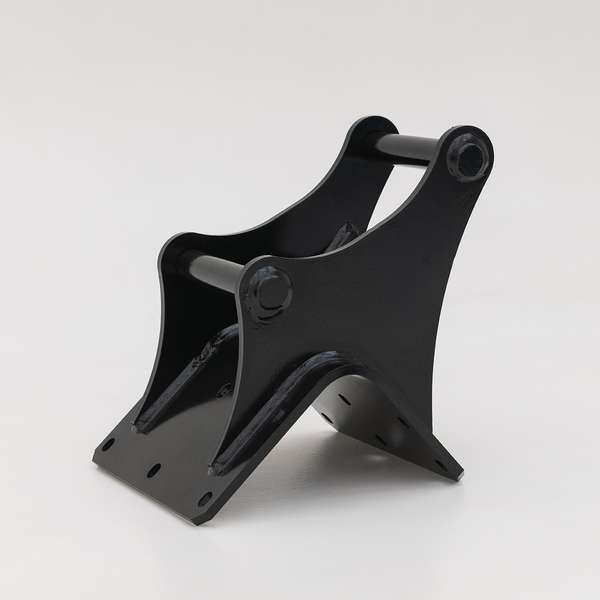

S45 Bracket
)
+ many others
S45 Bracket
+ many others
)

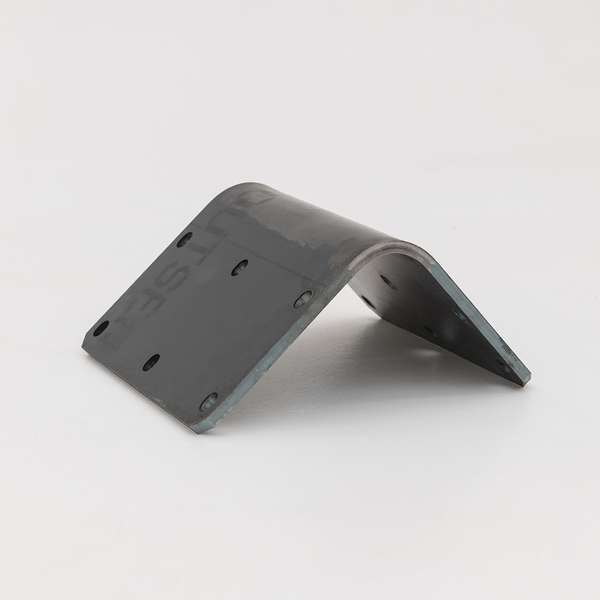

Adapter plate
Make your own connector to this bolt-on plate
Cutting cylinder
TMK 150 uses the standard cylinder, that gets the perfect balance of speed & power to serve the smaller machines that might not have as much hydraulic pressure or flow - 180 bar is all you need for a 150 mm cut!
)
STANDARD CYLINDER - Ø 100 mm
1,07 s cycle time with 100 l/min
STANDARD CYLINDER - Ø 100 mm
1,07 s cycle time with 100 l/min
| TMK 150 | Standard |
|---|---|
| Max. pressure | 180 bar |
| Recommended pressure | 180 bar |
| Litres/min | 40 - 100 l/min |
| Cylinder size | 50 mm |
)
Customer recommendations
See what the customers all around the world are saying about the TMK 150 shear.
Matti
Matti has been using the TMK 150-H on his Belarus 525 with tractor crane. Even though the tractor has seen years of use it still works very nicely and it has no problems with running the TMK 150 Tree Shear, allowing him to clean up his forests with ease!
Matti
Matti has been using the TMK 150-H on his Belarus 525 with tractor crane. Even though the tractor has seen years of use it still works very nicely and it has no problems with running the TMK 150 Tree Shear, allowing him to clean up his forests with ease!
Technical specifications
| A | 605 mm |
| B | 454 mm |
| C | 427 mm |
| D | 189 mm |
| E | 148 mm |
| F | 462 mm |
| G | 236 mm |
| H | 603 mm |
| I | 672 mm |
| J | 986 mm |
