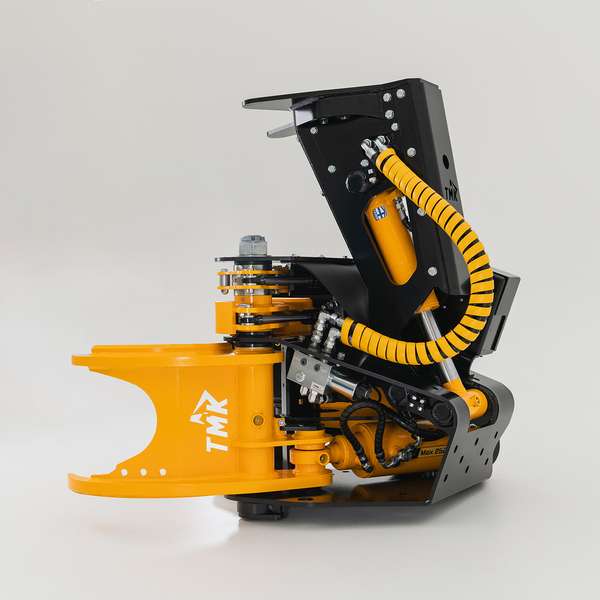

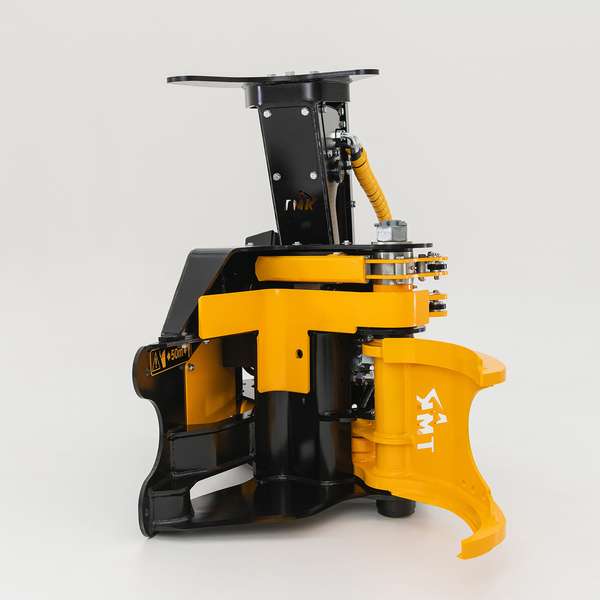

TMK 250 Tree Shear
TMK 250 Tree Shear has been specifically designed for forestry machines and big timber cranes. Despite its affordable price and compact size, the TMK 250 is a high-performance Tree Shear for tree clearing up to 250 mm.
- Cutting capacity
Up to 230 mm hard wood
Up to 250 mm soft wood
- Weight
300 kg including the Hanging Tilt
- Suitable for
Large forestry machines & timber cranes
- Recommended pressure
Standard cylinder: 280-320 bar
Bigger cylinder: 220-250 bar
HD cylinder: 180-220 bar
TMK Turbo cylinder: 220-250 bar
- Oil flow
Standard cylinder: 80-150 l/min
Bigger cylinder: 100-150 l/min
HD cylinder: 100-150 l/min
TMK Turbo cylinder: 50-150 l/min
- Material
Hardox® steel
)
)
* The price of a Shear depends on a lot of factors including the attachments, cylinder choice and the bracket. This is a starting estimate, to give a general idea on what to expect when planning to buy a Shear.
ARE YOU INTERESTED?
Feel free to contact us and we will be happy to tell you more!

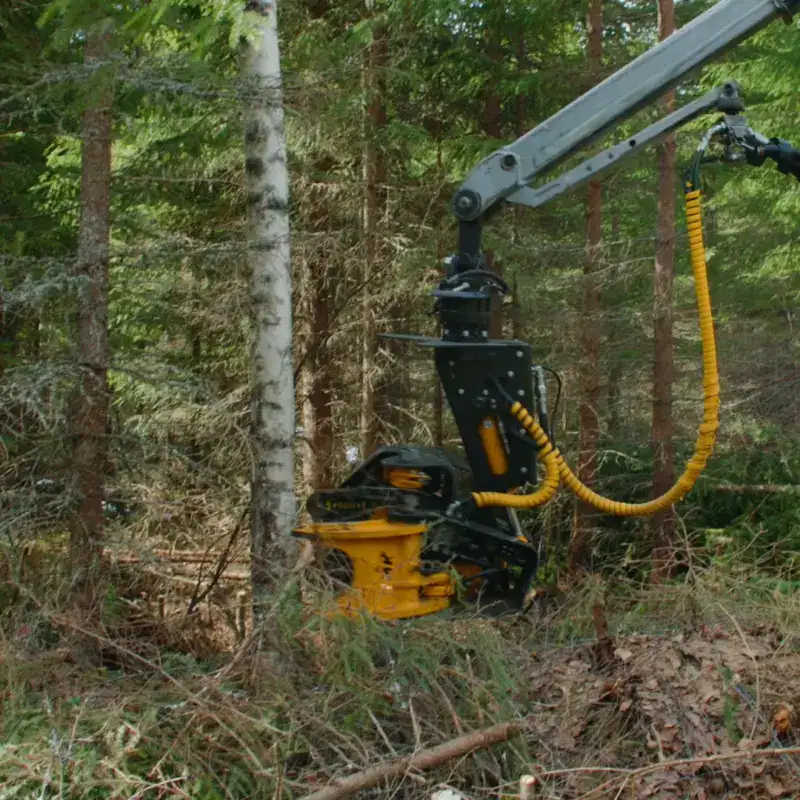

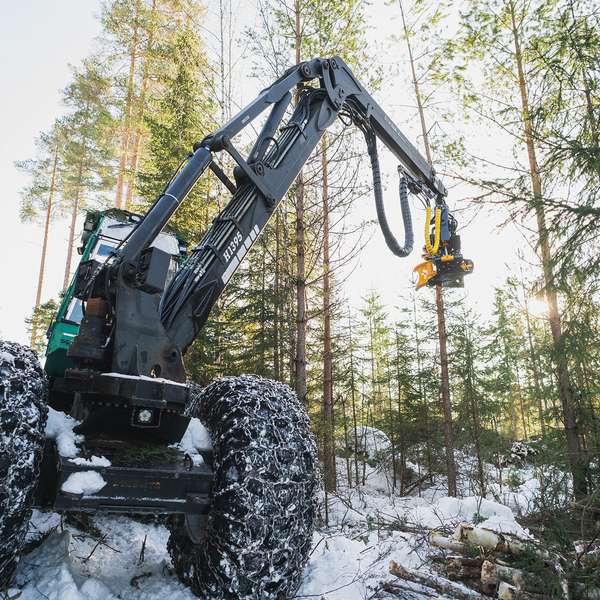

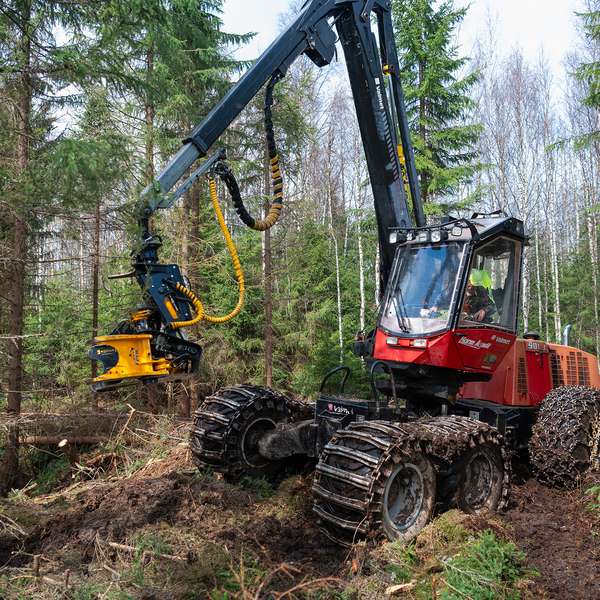

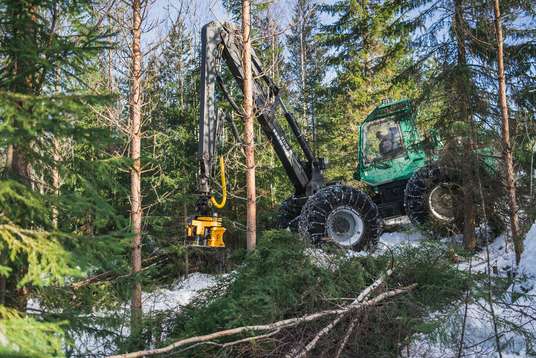

TMK 250 in action
)
TMK 250 with Collector
Valmet 901 Harvester
TMK 250 with Collector
Valmet 901 Harvester
)
TMK 250 with Collector
Valmet 840
)
TMK 250 with Collector and Delimber
Prosilva harvester
Features
)
Cuts up to 250 mm
TMK 250 has been designed to cut all the way up to 250 mm (9,8") trees.
One grapple design
TMK Tree Shears were the first guillotines in the market to utilize only one moving grapple arm. This provides superior strength for the frame and better alignment for the blade. It also allows us to make our shears lighter and easier to maintain than the two grapple equivalents.
)
)
Hanging Tilt
TMK 250's Hanging Tilt allows it to be used on forest machines and tractor cranes. It features a "pocket" for the trees to sit in at the top of the linkage and it has a center of gravity that is optimized for cutting and handling forces.

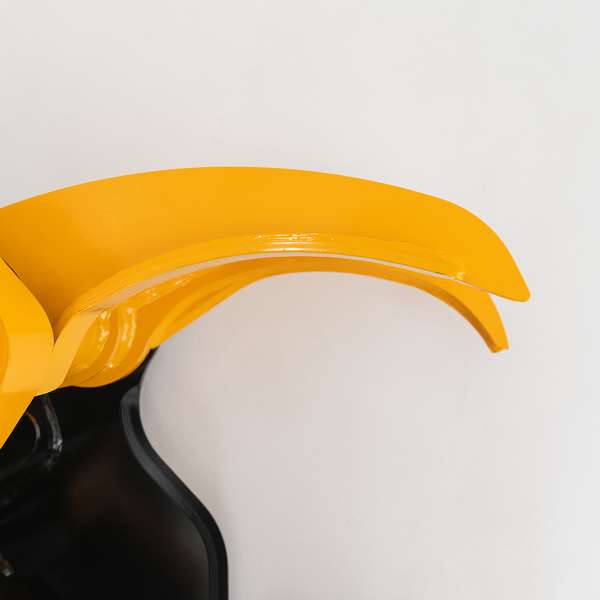

Optimized grapple & blade geometry
The grapple and the blade on the TMK 250 are a little bit different from the rest of the shears.
The bottom piece of the grapple is curved more to allow better cutting action when the shear is hanging and it isn't possible to push with the machine. The blade features a deeper "pocket" for the trees to sit in so it doesn't slide from the optimal cutting position.
)
)
Clean cuts with Brushgrapple
It allows “scissor”-like cutting, that provides much cleaner cutting results for small shrubs instead of twisting and ripping them from the ground with roots.
Modular design
Some say our Tree Shears can be assembled like Lego’s; you can build them up piece by piece from the basic shear to a professional piece of kit that can accumulate, de-branch, extend and rotate.
)
Optional attachments
Our powerful attachments will make your work more efficient. All TMK 300 attachments are designed for easy and simple retrofitting.
Coupler options
Many boltable rotators fit directly to top of the TMK Hanging Tilt.
For quick connect rotators we have several different connection adapters available.
)

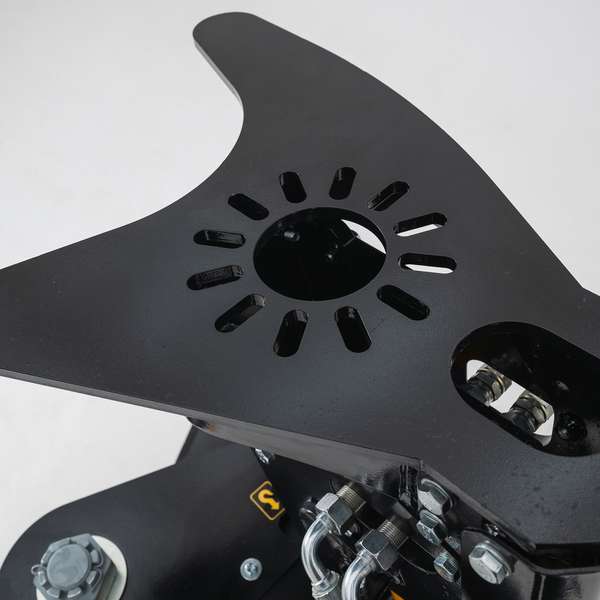

TMK 250 Hanging Tilt
The Hanging Tilt is compatible with all the most common rotators found on forest machines and tractor cranes.
TMK 250 Hanging Tilt
The Hanging Tilt is compatible with all the most common rotators found on forest machines and tractor cranes.
Cutting cylinder options
The versatile cylinder options for main cylinders of the TMK Tree Shear allow you to adapt the shear to your existing machine, both in terms of cutting power and operating speed. Because of various cylinder options, the shear can be connected to just about any machine.
)
TMK TURBO CYLINDER - Ø 80 mm & 130 mm
Little cylinder for speed and bigger cylinder for power
Perfect choice for tiltrotators and professional use
1,21 s cycle time with 100 l/min (little cylinder)
)
STANDARD CYLINDER - Ø 110 mm
Optimized speed and power when the machine is producing at least 300 bars of pressure
2,56 s cycle time with 100 l/min
TMK TURBO CYLINDER - Ø 80 mm & 130 mm
Little cylinder for speed and bigger cylinder for power
Perfect choice for tiltrotators and professional use
1,21 s cycle time with 100 l/min (little cylinder)
STANDARD CYLINDER - Ø 110 mm
Optimized speed and power when the machine is producing at least 300 bars of pressure
2,56 s cycle time with 100 l/min
)
EXTRA POWER CYLINDER - Ø 125 mm
Optimized power for machines that are producing around 250 bars of pressure
Slightly slower than Standard cylinder
3,10 s cycle time with 100 l/min
| TMK 300 | Standard | Extra power | TMK Turbo | HD |
|---|---|---|---|---|
| Max. pressure | 300 bar | 250 bar | 250 bar | 220 bar |
| Recommended pressure | 280-300 bar | 220-250 bar | 200-250 bar | 180-250 bar |
| Litres/min | 80-150 l/min | 100-150 l/min | 100-150 l/min | 50-150 l/min |
| Cylinder size | 110 mm | 125 mm | 80 & 130 mm | 140 mm |
Control method options
All that the base model TMK Tree Shear needs to function is one double-acting hydraulic circuit. Any attachments can be controlled with our innovative valves & kits, up to 4 functions from just one double acting hydraulic line!
By default, the electrical wiring kit or pressure-control valving is included in the price of the attachment. The pressure-control valving is plug and play, and the electrical control version can be upgraded to plug and play setup with the additional relay box which includes button strip and plug for the 12V outlet, or by fully upgrading to the wireless radio control with TMK Wireless Kit. The TMK Wireless kit is extremely useful in certain situations, such as using the product with a tiltrotator, or between multiple different machines.
It is also possible to use separate hydraulic lines for any of the different functions, if you wish to do so.
){kind=icon}
TMK Wireless Kit
){kind=icon}
ELECTRICAL WIRING
TMK Wireless Kit
ELECTRICAL WIRING
){kind=icon}
PRESSURE CONTROL
)
Customer recommandations
See what the customers all around the world are saying about the TMK Tree Shears!
Andy Davies
Little Eagle Bush Regeneration
"I think TMK has made a really good product here. It's robust. It does what it says it's going to do."
Andy Davies
Little Eagle Bush Regeneration
"I think TMK has made a really good product here. It's robust. It does what it says it's going to do."
Rupert Arneil
The Cotswold Tree & Access Hire
It’s a simple product which works. We can cut and hold the material safely and lie it down windrow so our chipper can come through and clear it easily.
Ricci Hirth
Hirth Small Engine Custom Excavating
It shears more than what I expected.
Get yours now!
It's easy & takes only a few steps
Tell us what type of work you are planning to do
Tell us what size trees are you planning to cut
Tell us what base machine you are planning to use e.g. pressure and flow for the attachment
We help you figure out the optimal solution for your needs
You get the machine that is perfect for you
Technical specifications
| A | 926 mm |
| B | 790 mm |
| C | 737 mm |
| D | 276 mm |
| E | 438 mm |
| F | 1125 mm |
| G | 977 mm |
