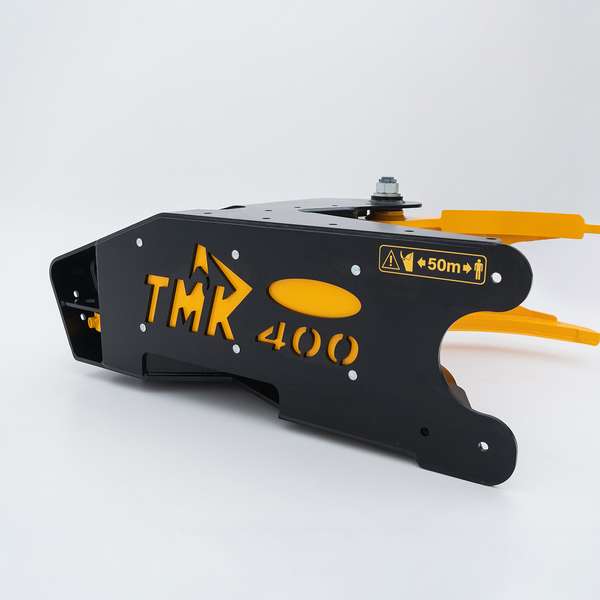

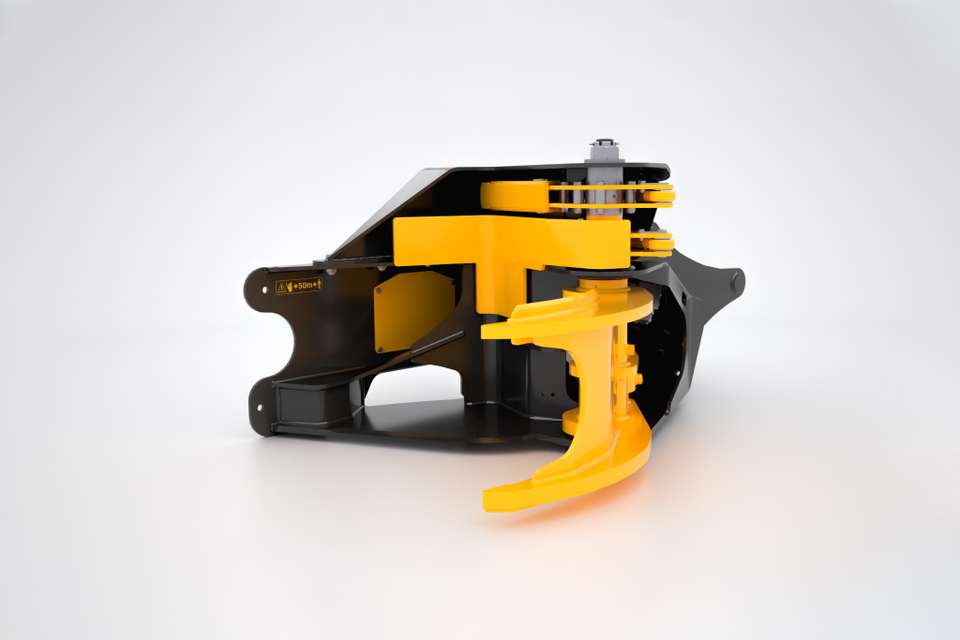

TMK 400 Next Gen Tree Shear
When you want to handle big trees safely, the TMK 400 Next Gen Tree Shear is just what you need.
- Cutting capacity
Up to 350 mm hard wood
Up to 400 mm soft wood
- Weight
650 kg without attachments or bolt on coupler
- Suitable for
10-30 tonne excavators
Large mini loaders & telehandlers
- Recommended pressure
Standard cylinder: 300-320 bar
HD cylinder: 220-250 bar
TMK Turbo cylinder: 220-250 bar
- Oil flow
Standard cylinder: 100-180 l/min
HD cylinder: 110-180 l/min
TMK Turbo cylinder: 80-180 l/min
- Material
Hardox®
| A | 1168 mm |
| B | 1055 mm |
| C | 400 mm |
| D | 1545 mm |
| E | 512 mm |
| F | 300 mm |
| G | 939 mm |
)
)
)
* The price of a Shear depends on a lot of factors including the attachments, cylinder choice and the bracket. This is a starting estimate, to give a general idea on what to expect when planning to buy a Shear.
ARE YOU INTERESTED?
Feel free to contact us and we will be happy to tell you more!

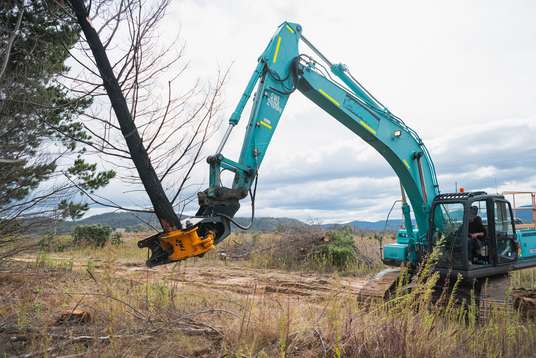

TMK 400 showcased
See it in action
)

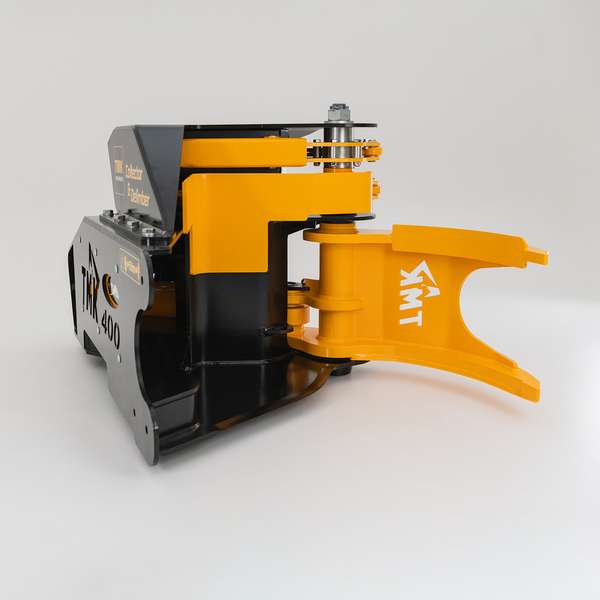

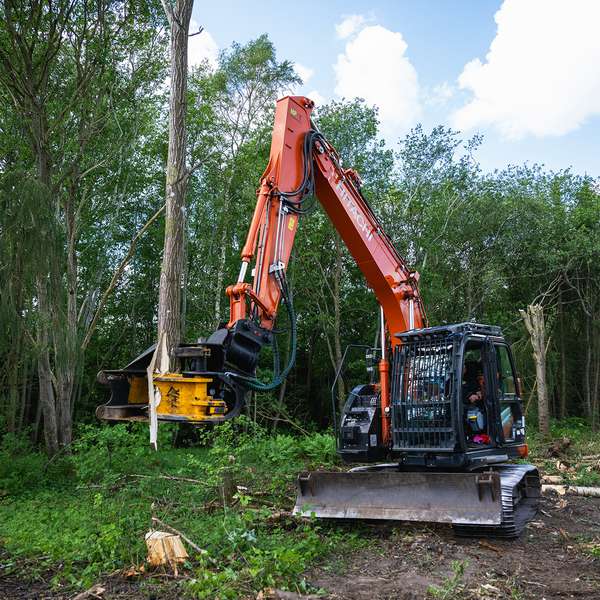

TMK 400 With Collector
Hitachi ZX 135 US-7
TMK 400 With Collector
Hitachi ZX 135 US-7
)

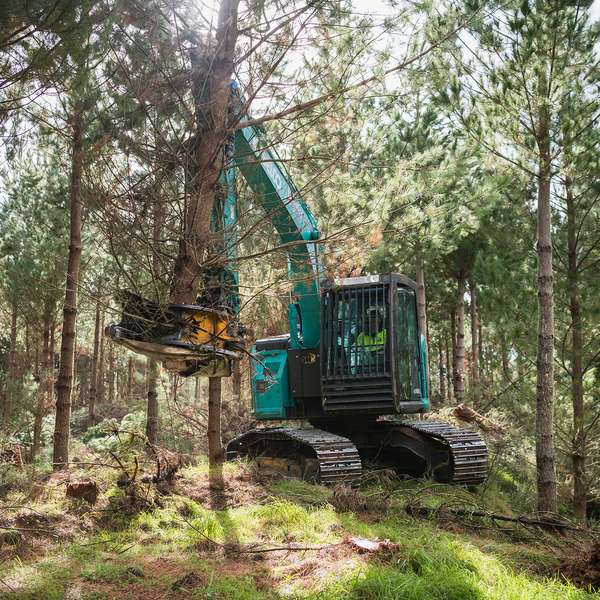

TMK 400
Kobelco SK 140 SRL
Features
)

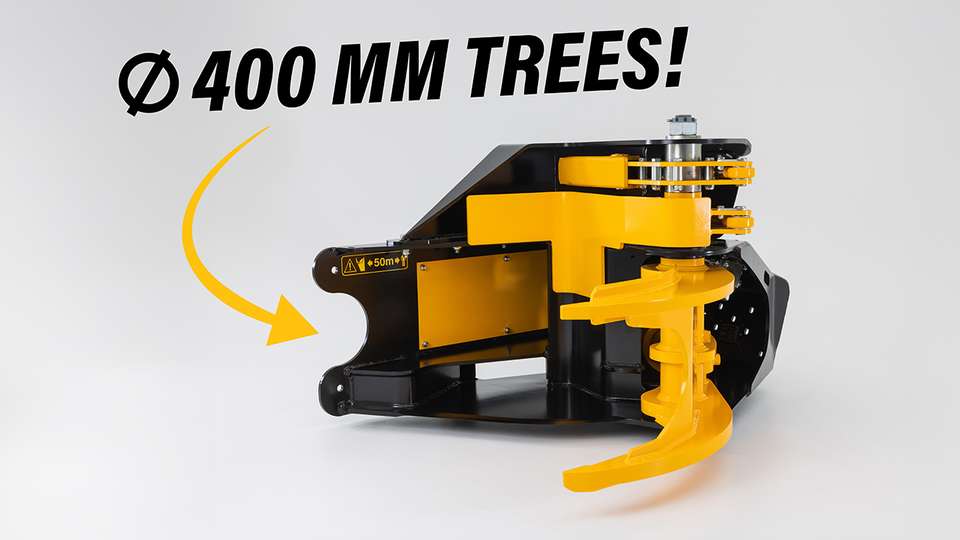

Cuts up to 400 mm
TMK 400 has been designed to cut all the way up to 400 mm (15,7") trees.
One grapple design
TMK Tree Shears were the first guillotines in the market to utilize only one moving grapple arm. This provides superior strength for the frame and better alignment for the blade. It also allows us to make our shears lighter and easier to maintain than the two grapple equivalents.
)
)
Strong & light frame
TMK Tree Shears use a capsular design which allow them to be incredibly strong while being lighter than the competition.
The capsular structure helps keep the product small in size, which helps with maneuvering in the forest.
Clean cuts with Brushgrapple
It allows “scissor”-like cutting, that provides much cleaner cutting results for small shrubs instead of twisting and ripping them from the ground with roots.
)
)
Modular design
Some say our Tree Shears can be assembled like Lego’s; you can build them up piece by piece from the basic shear to a professional piece of kit that can accumulate, de-branch, extend and rotate.
Questions?
We'll gladly help you out, just reach out to us!
Attachments
Our powerful attachments will make your work more efficient. All TMK 400 attachments are designed for easy and simple retrofitting.
Quick coupler options
TMK products can be fitted with many different kind of Brackets depending on what you have in your machine.
You can choose from popular options, order a custom bracket or have it done elsewhere on our adapter plate.
)

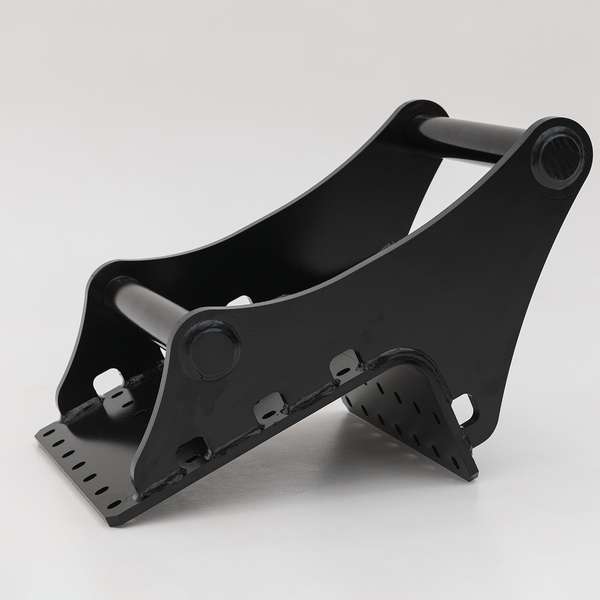

S-70 Bracket
)

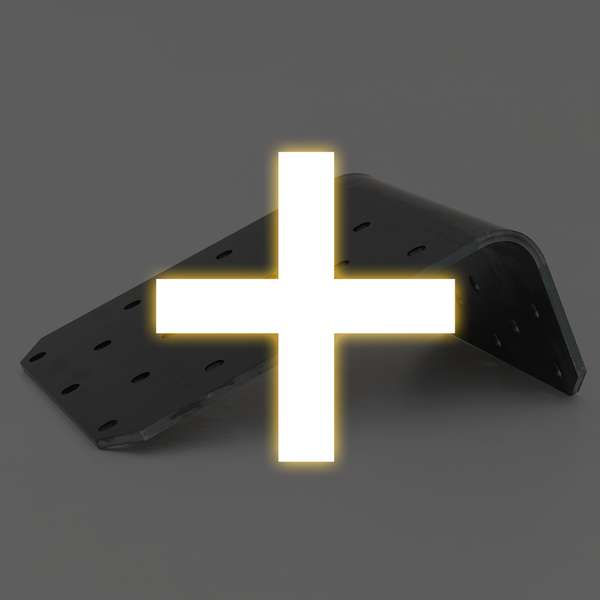

+ many others
S-70 Bracket
+ many others
)
TMK 400 Adapter plate
Make your own connector to this bolt-on plate
Cutting cylinder options
The versatile cylinder options for main cylinders of the TMK Tree Shear allow you to adapt the shear to your existing machine, both in terms of cutting power and operating speed. Because of various cylinder options, the shear can be connected to just about any machine.
)
TMK TURBO CYLINDER - Ø 110 mm & 160 mm
Little cylinder for speed and bigger cylinder for power
Perfect choice for tiltrotators and professional use
2,77 s cycle time with 100 l/min (little cylinder)
)
STANDARD CYLINDER - Ø 140 mm
Optimized speed and power when the machine is producing at least 300 bars of pressure
5,10 s cycle time with 100 l/min (little cylinder)
TMK TURBO CYLINDER - Ø 110 mm & 160 mm
Little cylinder for speed and bigger cylinder for power
Perfect choice for tiltrotators and professional use
2,77 s cycle time with 100 l/min (little cylinder)
STANDARD CYLINDER - Ø 140 mm
Optimized speed and power when the machine is producing at least 300 bars of pressure
5,10 s cycle time with 100 l/min (little cylinder)
)
HD CYLINDER - Ø 160 mm
Maximum cutting power
Slowest cycle time
6,08 s cycle time with 100 l/min (little cylinder)
| TMK 400 | Standard | HD | TMK TURBO |
|---|---|---|---|
| Max. pressure | 320 bar | 250 bar | 250 bar |
| Recommended pressure | 300-320 bar | 220-250 bar | 220-250 bar |
| Litres/min | 100-180 l/min | 80-180 l/min | 80-180 l/min |
| Cylinder size | 140 mm | 160 mm | 110 & 160 mm |
Control method options
All that the base model TMK Tree Shear needs to function is one double-acting hydraulic circuit. Any attachments can be controlled with our innovative valves & kits, up to 4 functions from just one double acting hydraulic line!
By default, the electrical wiring kit or pressure-control valving is included in the price of the attachment. The pressure-control valving is plug and play, and the electrical control version can be upgraded to plug and play setup with the additional relay box which includes button strip and plug for the 12V outlet, or by fully upgrading to the wireless radio control with TMK Wireless Kit. The TMK Wireless kit is extremely useful in certain situations, such as using the product with a tiltrotator, or between multiple different machines.
It is also possible to use separate hydraulic lines for any of the different functions, if you wish to do so.
){kind=icon}
TMK Wireless Kit
){kind=icon}
ELECTRICAL WIRING
TMK Wireless Kit
ELECTRICAL WIRING
){kind=icon}
PRESSURE CONTROL
)
Customer recommandations
See what the customers all around the world are saying about the TMK 400 Tree Shear.
Daniel Thorburn
Thorburn Contracting LTD
The best thing would be the simplicity, definitely. I like just how basic it is, really.
Daniel Thorburn
Thorburn Contracting LTD
The best thing would be the simplicity, definitely. I like just how basic it is, really.
Paul Ojansuu
The quality of the MultiGrabs and the shear is fantastic. The materials that it’s made of is second to none.
Get yours now!
It's easy & takes only a few steps
Tell us what type of work you are planning to do
Tell us what size trees are you planning to cut
Tell us what base machine you are planning to use e.g. pressure and flow for the attachment
We help you figure out the optimal solution for your needs
You get the machine that is perfect for you
)
Got some more questions?
Feel free to contact us, we'd be happy to help you get more information, give you a quote or just answer any questions you might have.
