TMK MultiGrab M Heavy Duty
MultiGrab with stronger body and solid linkage, for heavy work.
- Weight
820 kg without bracket
- Suitable for
13-30 tonne excavators
- Recommended pressure
Standard cylinder: 200-250 bar
- Oil flow
Standard cylinder: 50-150 l/min
- MAX OPENING
1532 mm
| A | 1150 mm |
| B | 830 mm |
| C | 1532 mm |
| D | 1300 mm |
| E | 1937 mm |
)

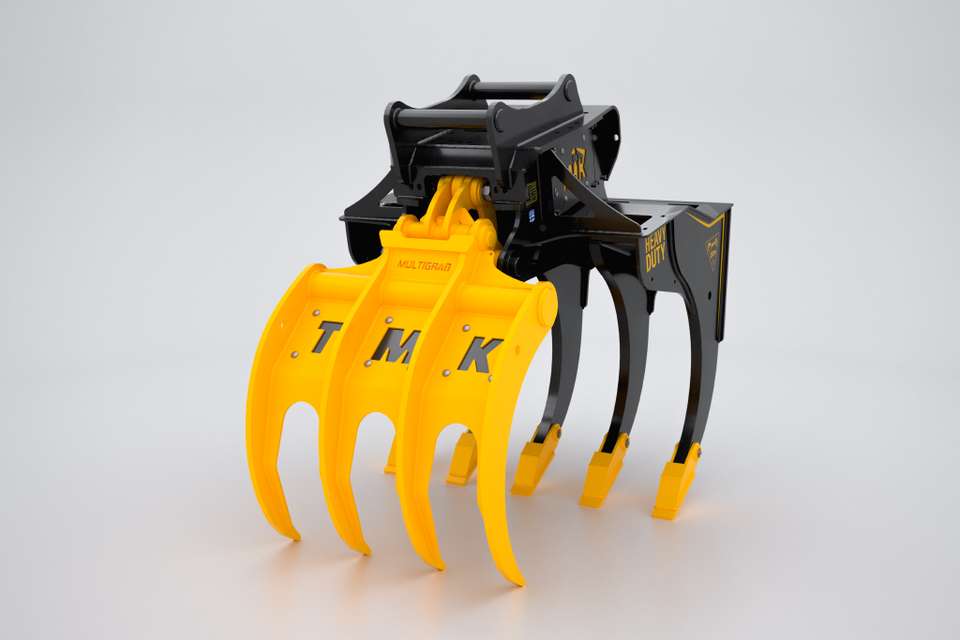

TMK MultiGrab M Heavy Duty
)
TMK MultiGrab M Heavy Duty with a Rotator
* The price of a MultiGrab depends on a lot of factors including the attachments and the bracket. This is a starting estimate, to give a general idea on what to expect when planning to buy a MultiGrab.
ARE YOU INTERESTED?
Feel free to contact us and we will be happy to tell you more!
)
Made for heavy work!

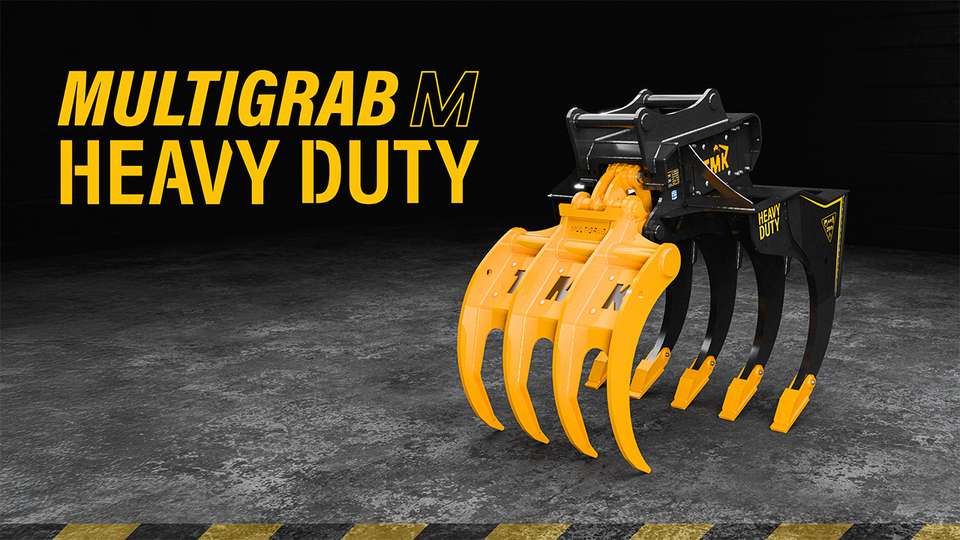

TMK MULTIGRAB M HD EXPLAINED
See it in action
)

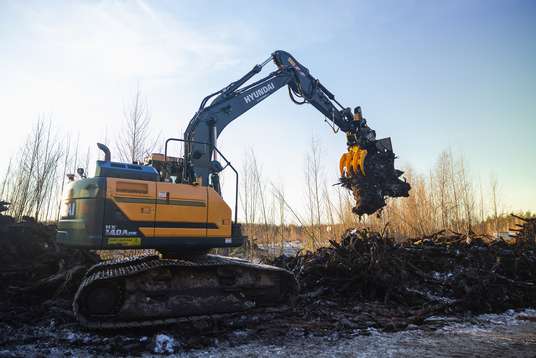

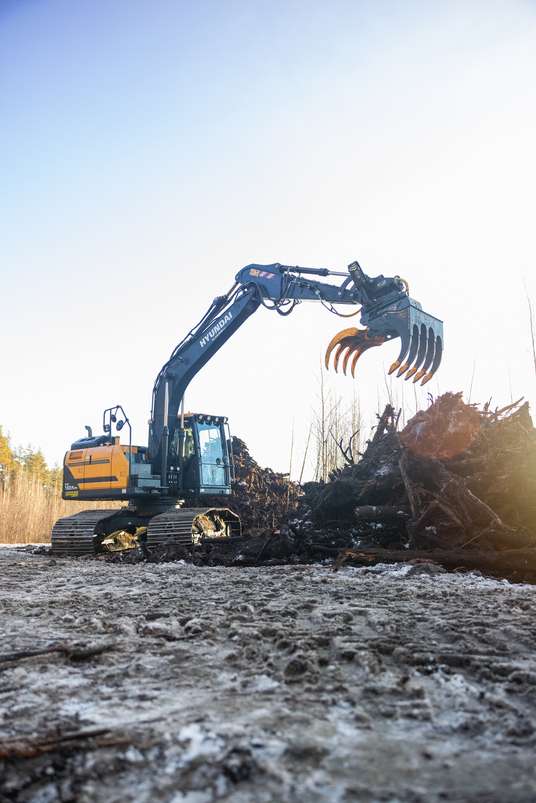

TMK MULTIGRAB M HD moving stumps
Hyundai HX 140A HW
TMK MULTIGRAB M HD moving stumps
Hyundai HX 140A HW
)
TMK MULTIGRAB M HD moving stumps
Hyundai HX 140A HW
Features
)
A dependable multipurpose attachment
Demolition grab, boulder grab, sorting grab, stump puller or rake The MultiGrab makes light work of heavy loads, such as lifting and moving large trunks, boulders, beams and girders, but it also enables very precise work such as sorting materials. Whatever the task, the TMK MultiGrab is up to it!
Stronger frame
TMK MultiGrab Heavy Duty version features a stronger frame that has less tines for ultimate durability.
Unlike in all the other TMK MultiGrab models, TMK MultiGrab M HD has the grapple solid fixed into the linkage for improved durability.
)
)
Replaceable wear teeth
Easily replaceable Hardox® wear teeth enable longer lifespan for the frame side tines!
Wide 180° grapple opening
Wide opening to grab larger objects and improve your field of view & productivity.
)
)
Closes tightly
Closing as tight as a two-by-four to efficiently hold & move the smallest materials.
Pinch grip
Perfect alignment - Grab and move objects on the worksite easily with the fingertip-squeeze.
)
)
Patented linkage
MultiGrab's linkage provides speed when moving the grapple out of the way and power when you really need it.
Questions?
We'll gladly help you out, just reach out to us!
Rotation with your TMK MultiGrab?
)
TMK MultiGrab M-F HD (fixed)
The F-series (Fixed mounted) is for operators looking to keep things simple on the job site or operators that already have a tilt-rotator on their machine!
The Fixed mounted version of the TMK MultiGrab M HD is the rotator-less option, making it a great choice for work that doesn’t require extra flexibility. It can also be paired with third-party tiltrotators to get the most versatility out of your MultiGrab.
The M-F model is 1150 mm wide and weighs 820 kg without the coupler.
)
TMK MultiGrab M-R HD (Rotating)
The R-series (Rotator mounted) TMK MultiGrab, TMK MultiGrab M-R HD comes with its own integrated rotation and is a great choice when there is no tilt-rotator available, but more agility is still needed for the work. The rotator allows for continuous 360 degree rotation.
TMK MultiGrab M-R HD is 1150 mm wide and weighs 960 kg without a coupler for the machine.
Quick coupler options
TMK MultiGrabs are fitted with welded quick couplers.
You can choose from all the most common brackets, including Engcon EC-Oil, Rototilt QuickChange and OilQuick. We also offer blank top if you wish to make your own bracket.
)
S brackets
Most popular choice worldwide
)
NTP-10 Bracket
Popular choice in the nordics, also known as B20/S1
S brackets
Most popular choice worldwide
NTP-10 Bracket
Popular choice in the nordics, also known as B20/S1
)
Hydraulic quick couplers
OEM made Engcon EC-Oil, Rototilt QuickChange, Steelwrist SQ & OilQuick hydraulic quick couplers for tiltrotators
Cylinder table
| MultiGrab S | Standard |
|---|---|
| Max. pressure | 250 bar |
| Recommended pressure | 220-250 bar |
| Litres/min | 50-150 l/min |
)
