TMK MultiGrab S
Durable and long lasting multitool for smaller excavators!
- Weight
400 kg without attachments or bracket
- Suitable for
6-12 tonne excavators
- Recommended pressure
Standard cylinder: 220-250 bar
- Oil flow
Standard cylinder: 50-150 l/min
- MAX OPENING
1382 mm wide opening
| A | 840 mm |
| B | 612 mm |
| C | 1382 mm |
| D | 1077 mm |
| E | 1689 mm |
)
TMK MultiGrab S
)
TMK MultiGrab S with a Rotator
* The price of a MultiGrab depends on a lot of factors including the attachments and the bracket. This is a starting estimate, to give a general idea on what to expect when planning to buy a MultiGrab.
ARE YOU INTERESTED?
Feel free to contact us and we will be happy to tell you more!
)
A true multitool for an excavator.
TMK MULTIGRAB S EXPLAINED
See it in action
)
TMK MultiGrab S Moving branches
John Deere 60G
TMK MultiGrab S Moving branches
John Deere 60G
)

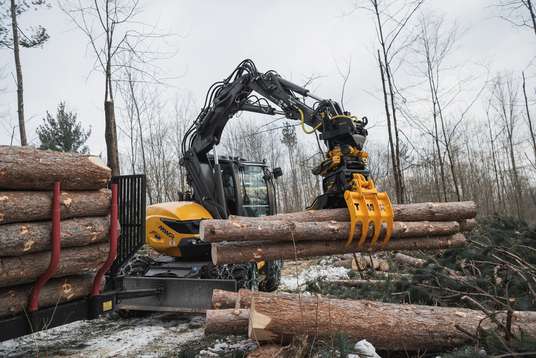

TMK MultiGrab S logging
Mecalac 11MWR
)

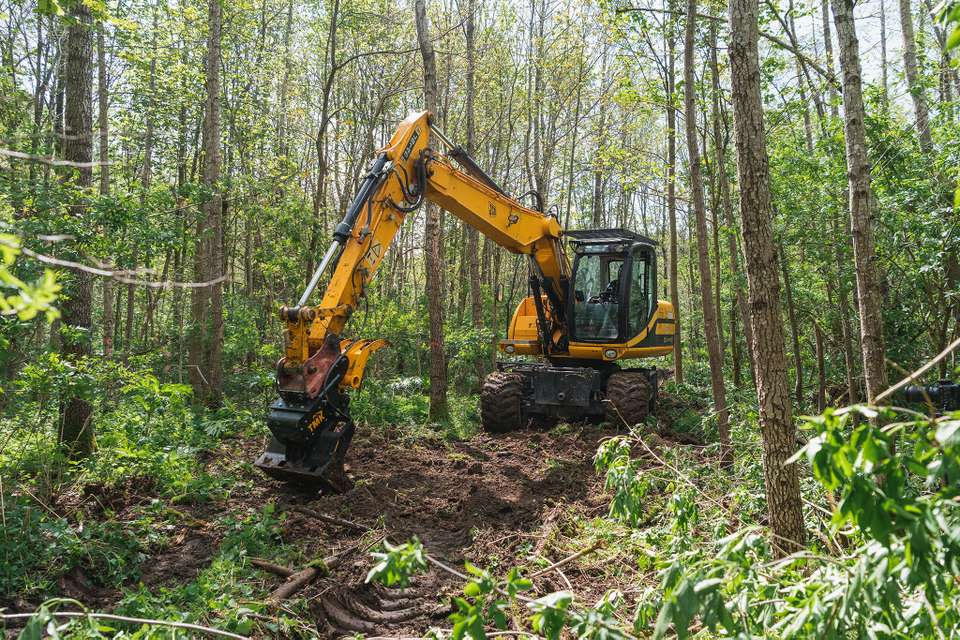

TMK MultiGrab S removing top soil
JCB JS 145 W
Interested?
Let's find you a suitable solution!
Features
)
A dependable multipurpose attachment
Demolition grab, boulder grab, sorting grab, stump puller or rake The MultiGrab makes light work of heavy loads, such as lifting and moving large trunks, boulders, beams and girders, but it also enables very precise work such as sorting materials. Whatever the task, the TMK MultiGrab is up to it!
Wide 180° grapple opening
Wide opening to grab larger objects and improve your field of view & productivity.
)
)
Closes tightly
Closing as tight as a two-by-four to efficiently hold & move the smallest materials.
Pinch grip
Perfect alignment - Grab and move objects on the worksite easily with the fingertip-squeeze.
)
)
Patented linkage
MultiGrab's linkage provides speed when moving the grapple out of the way and power when you really need it.
Detachable grapple
Easily drop the thumb when you need to eliminate weight or focus on heavy pulling.
)
Questions?
We'll gladly help you out, just reach out to us!
Rotation with your TMK MultiGrab?
)
TMK MultiGrab S-F (Fixed)
The F-series (Fixed mounted) is for operators looking to keep things simple on the job site or operators that already have a tilt-rotator on their machine!
The Fixed mounted version of the TMK MultiGrab S is the rotator-less option, making it a great choice for work that doesn’t require extra flexibility. It can also be paired with third-party tiltrotators to get the most versatility out of your MultiGrab.
The S-F model is 840 mm wide and weighs 400 kg without the coupler.
)
TMK MultiGrab S-R (Rotating)
The R-series (Rotator mounted) TMK MultiGrab, TMK MultiGrab S-R comes with its own integrated rotation and is a great choice when there is no tilt-rotator available, but more agility is still needed for the work. The rotator allows for continuous 360 degree rotation.
TMK MultiGrab S-R is 840 mm wide and weighs 540 kg without a coupler for the machine.
Attachments
Quick coupler options
TMK MultiGrabs are fitted with welded quick couplers.
You can choose from all the most common brackets, including Engcon EC-Oil, Rototilt QuickChange and OilQuick. We also offer blank top if you wish to make your own bracket.
)
S brackets
Most popular choice worldwide
)
NTP-10 Bracket
Popular choice in the nordics, also known as B20/S1
S brackets
Most popular choice worldwide
NTP-10 Bracket
Popular choice in the nordics, also known as B20/S1
)
Hydraulic quick couplers
OEM made Engcon EC-Oil, Rototilt QuickChange, Steelwrist SQ & OilQuick hydraulic quick couplers for tiltrotators
Cylinder table
| MultiGrab S | Standard |
|---|---|
| Max. pressure | 250 bar |
| Recommended pressure | 220-250 bar |
| Litres/min | 50-150 l/min |
)
Download a brochure
All TMK MultiGrab products in one brochure and in an easy to print format.
Customer recommandations
See what the customers all around the world are saying about the TMK MultiGrab.
Paul Ojansuu
The quality of the MultiGrabs and the shear is fantastic. The materials that it’s made of is second to none.
Paul Ojansuu
The quality of the MultiGrabs and the shear is fantastic. The materials that it’s made of is second to none.
Ben Canonica
Canonica Farm & Forest Services
Some of the best elements and aspects of the TMK products are the design, the simplicity, but also the effectiveness and the quality of the construction.
Get yours now!
It's easy & takes only a few steps
Tell us what type of work you are planning to do
Tell us what base machine you are planning to use e.g. pressure and flow for the attachment
We help you figure out the optimal solution for your needs
You get the machine that is perfect for you
